1.3.1 Post-flight upload verification

✅ After completing a drone flight, image upload and analysis are performed on the platform. In order to process the images collected by the drone into the data required for the field, it is necessary to check that the collected images have been uploaded properly. It takes about half a day to generate orthophotos and 3D models through a self-developed engine. Try using online data to digitize offline construction sites.

Permissions and project setup

1. The project manager invites the people who will upload the photos and related personnel to the project.

2. The project manager grants the invited persons "manager" permissions.

3. Platform users can log in with the invited account, enter the project, and upload and analyze images through the following process.

ℹ️ Please refer to the 2.1 Meisas Platform Account and Project Creation Manual for more details!



Adding Profiles

• After checking the photos after the flight and there are no abnormalities, upload the captured photo data to the platform website.

• Click the "Add Site Conditions" button to create a new site condition for the project on the specified date.

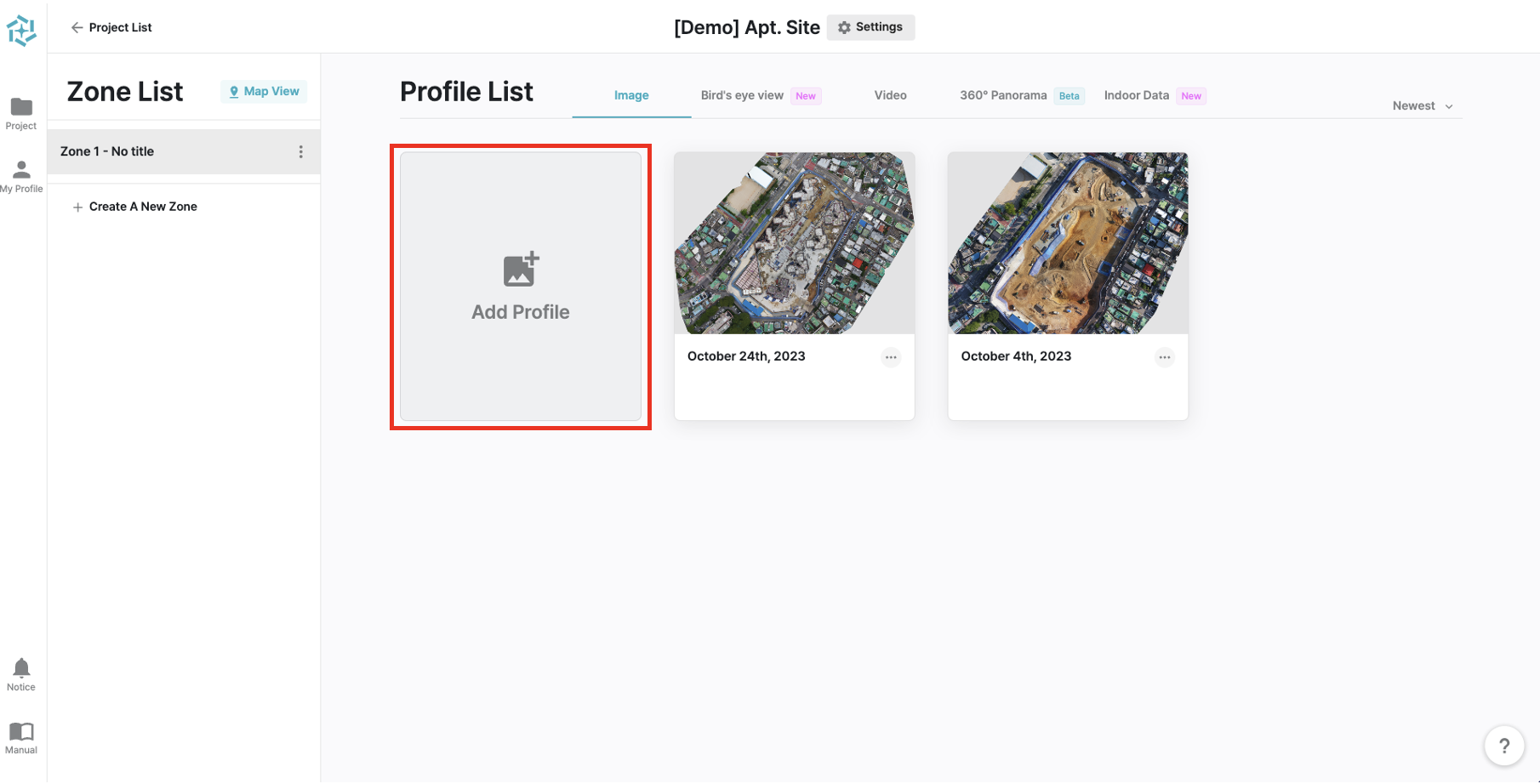

  Add New Profile Screen

Adding Shooting Date and Memo

• You can set the shooting date and leave a memo to enter the characteristics or conditions of the day.



  Project Date Selection

Analysis Tool (Engine) Selection

• The Meisas Platform offers a total of three analysis engines: Meissa, Pix4D, and Metashape. Each engine has its own strengths and weaknesses, so it is important to choose the right engine for your needs.

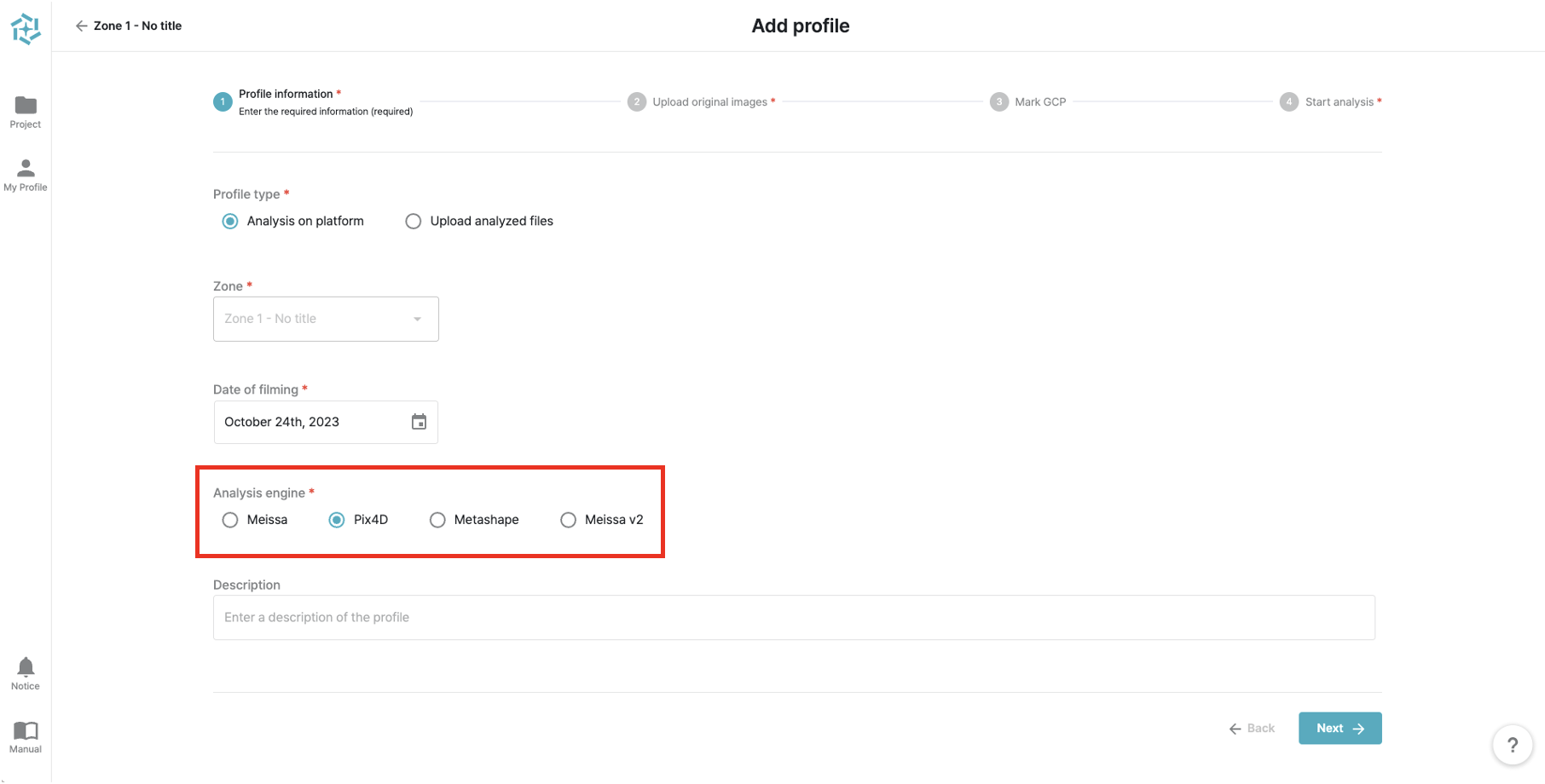

  How to Select an Analysis Tool (Engine)

ℹ️ The Meissa engine is available to all users, while the Pix4D and Metashape engines are only available to users who have a Premium package or have applied for a separate license.

✅ Analysis Engine Guide

The Meisas Platform offers a total of three analysis engines: Meissa, Pix4D, and Metashape. Each engine has its own strengths and weaknesses, so it is important to choose the right engine for your needs.

• Meissa engine: The Meissa engine is a proprietary engine developed by Meisas Corporation. It is characterized by its fast image processing speed and its ability to produce accurate results in a variety of conditions.
• Pix4D engine: The Pix4D engine is a global industry-leading engine that is used in a variety of industries. It is known for its accuracy and its ability to produce detailed results.
• Metashape engine: The Metashape engine is a global software that can produce high-quality textured 3D models. It is known for its ability to create realistic models that can be used for a variety of purposes.

Image Upload and Location Verification

⚠️ At least 30 images are required.

Images with less than 30 images cannot be analyzed.

• Click the '+ File Add' button to select and add images you have.

• Once the image upload is complete, the locations of each of the captured photos will appear on the map as follows.

• It is necessary to upload the images added to the server.

• To upload images to the server, click the "Upload" button in the lower left corner of the image upload page. A pop-up will appear indicating that the images are being uploaded. Do not close your browser until the upload is complete.

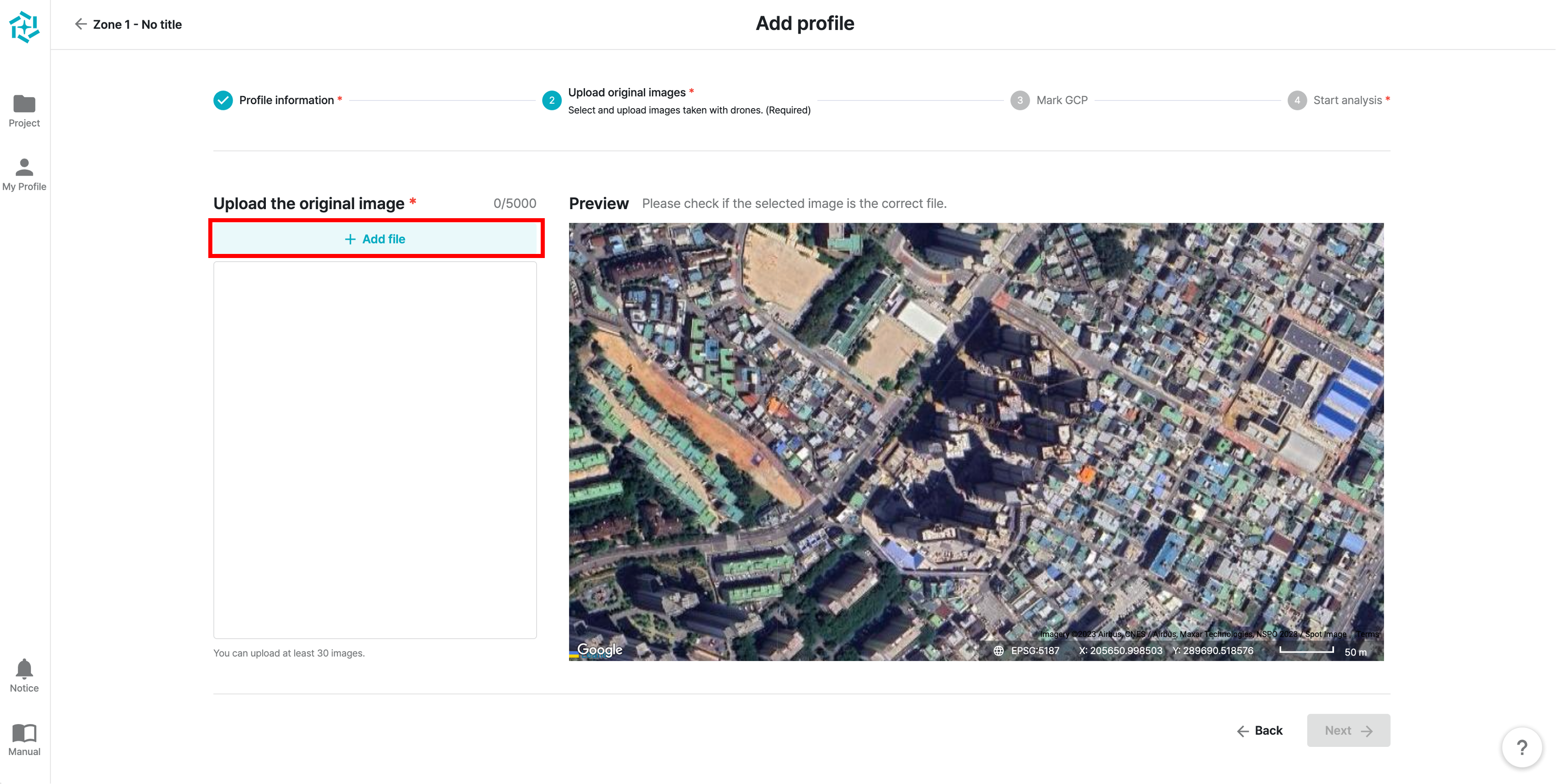

  Image Upload Screen



  Image Upload Screen

• If the upload is complete, click the 'Next' button in the lower right corner.

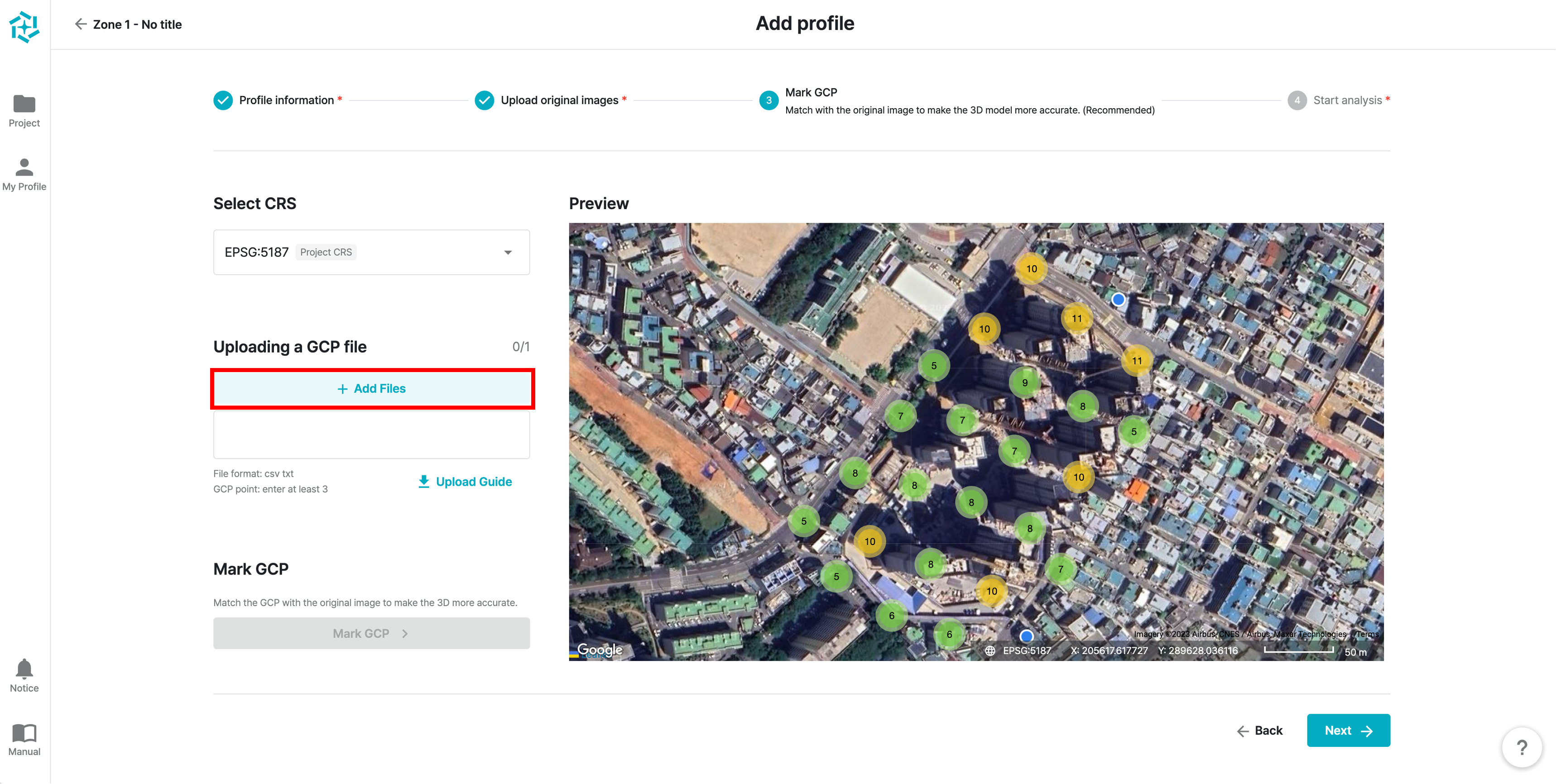

• Clicking the 'GCP Upload' button will take you to the GCP task screen.

Image Analysis Request

• If the image upload is complete, click the 'Analyze' button to start the analysis.

• After that, the following screen will be maintained until it is complete. Even if you close the page or PC, the analysis will continue.

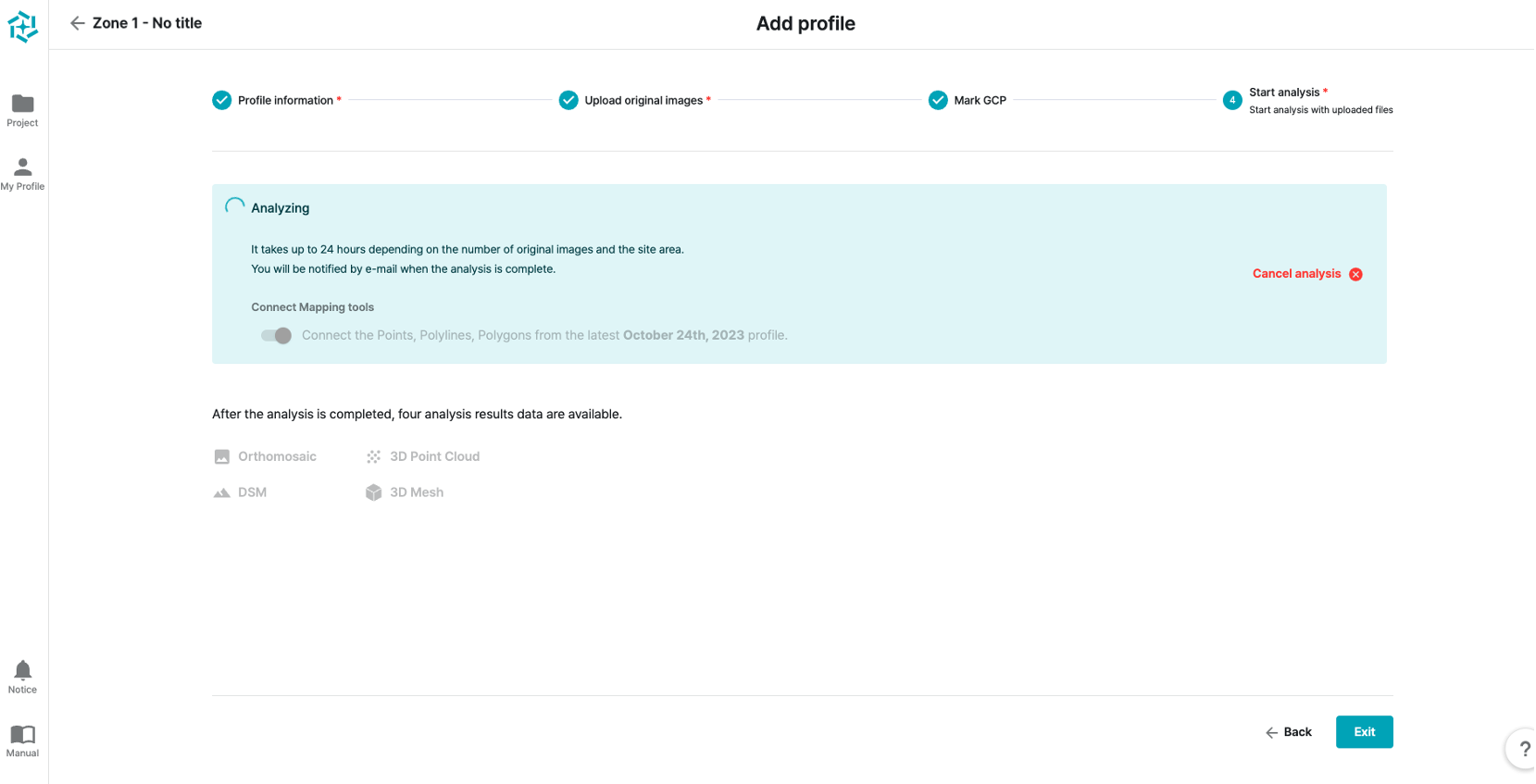

  File Analysis in Progress Screen

 ℹ️ [Analysis in Progress Notice]

• Even if you close the service, the analysis will continue when the analysis request is completed and is in the analysis state.

• The analysis time varies depending on the area and the number of photos, but the approximate time is as follows.

  • 200 photos = 2 ~ 3 hours
  • 800 photos = 8 ~ 9 hours

• Once the analysis is complete, the field situation for the date will be added and you can use all the features provided by the Meisas Drone Data Platform.

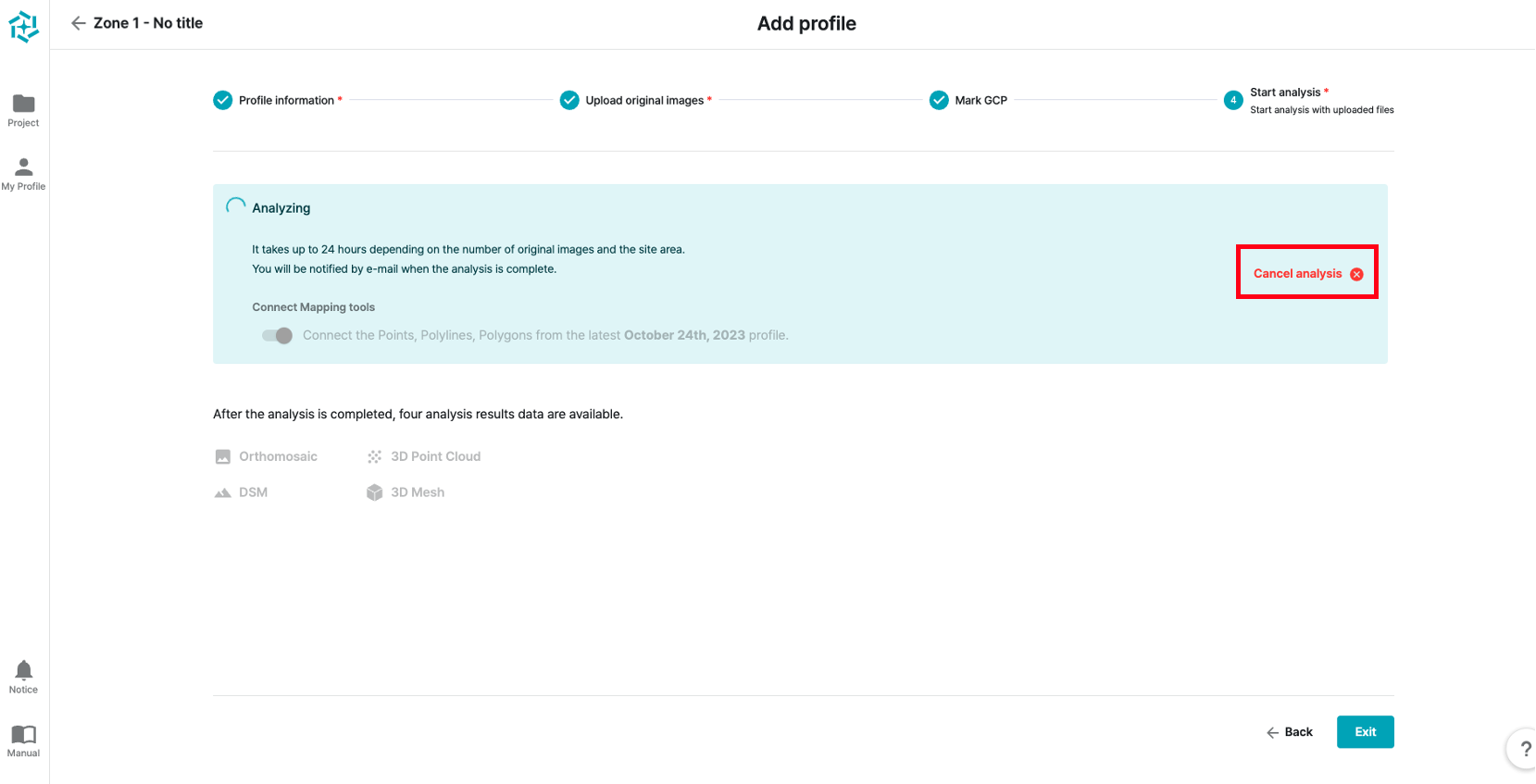

  Analysis Cancelation Notice Screen

ℹ️ [Analysis Cancelation Notice]

• If you have uploaded the photo data incorrectly or want to upload additional files, you can click the 'Cancel Analysis' button to cancel the analysis.
• If the 'Cancel Analysis' request is completed normally, the field situation will be changed to 'Waiting' status.
• Once the 'Waiting' status is confirmed, you can check the photo analysis data again and proceed with the upload.
• PIX4D is not possible to cancel the analysis even if you click the 'Cancel Analysis' button.
  • If you need to cancel the analysis, please contact the person in charge.
