✅ You can visualise your uploaded 2D plan elevations as 3D modelling. This allows for comparison with the 3D as-built modeling and provides an intuitive view of the current status.
▎Enabling 3D planimetry

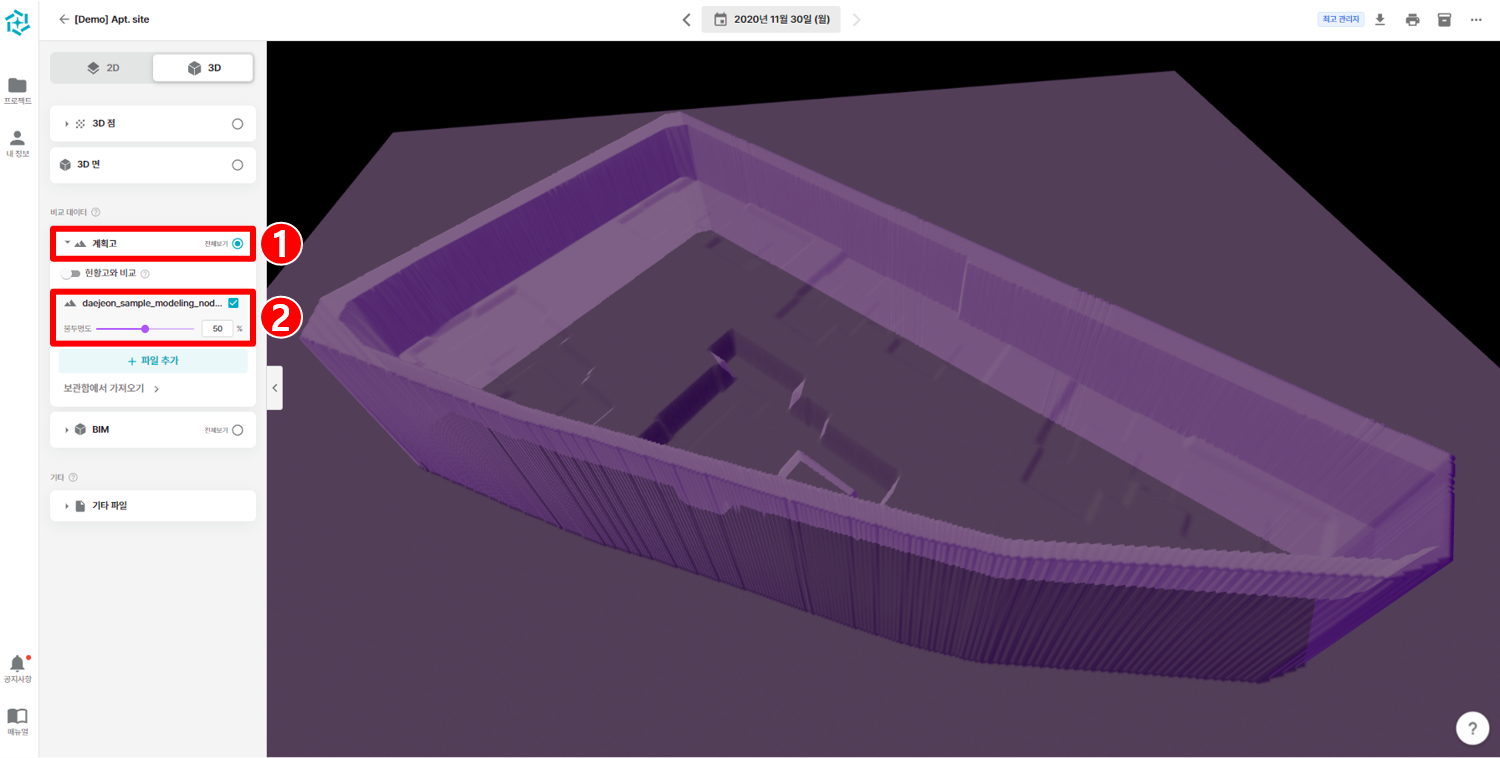

① Click on Plan Elevation to activate the 3D Plan Elevation screen.
② You can see the name of the uploaded plan, which will disappear from the screen if you deactivate the checkbox. You can adjust the opacity by adjusting the horizontal slide or by entering a number.
▎Compare with 3D status report

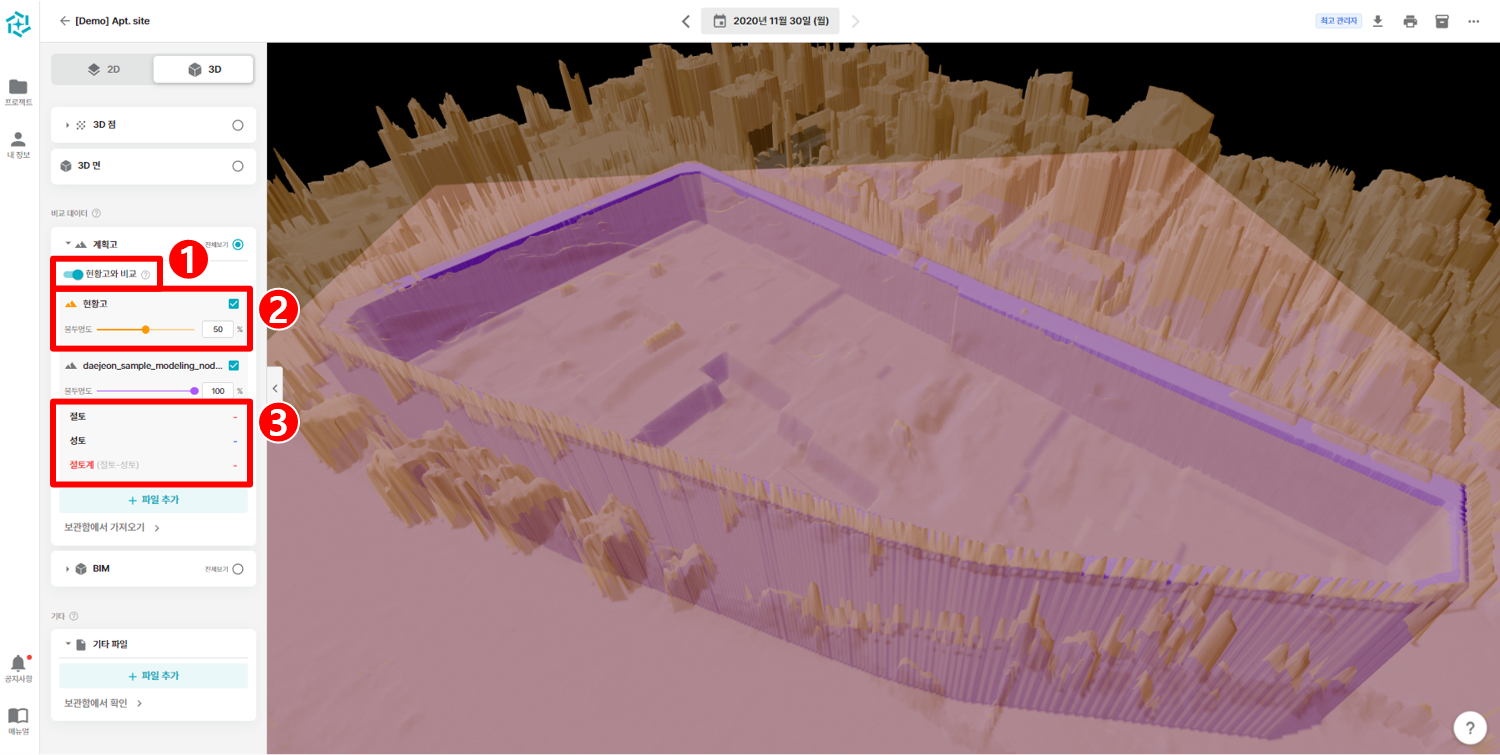

① Clicking the Compare to Actuals button will display the Actuals in 3D on the screen, allowing you to compare it to the Plan simultaneously.
② Disabling the checkbox for the status report will make it disappear from the screen, and you can adjust its opacity with a horizontal slider or numerical entry.
③ You can check the amount of cut and fill soil by comparing the current height to the planned height.
▎Managing 3D plan elevation files

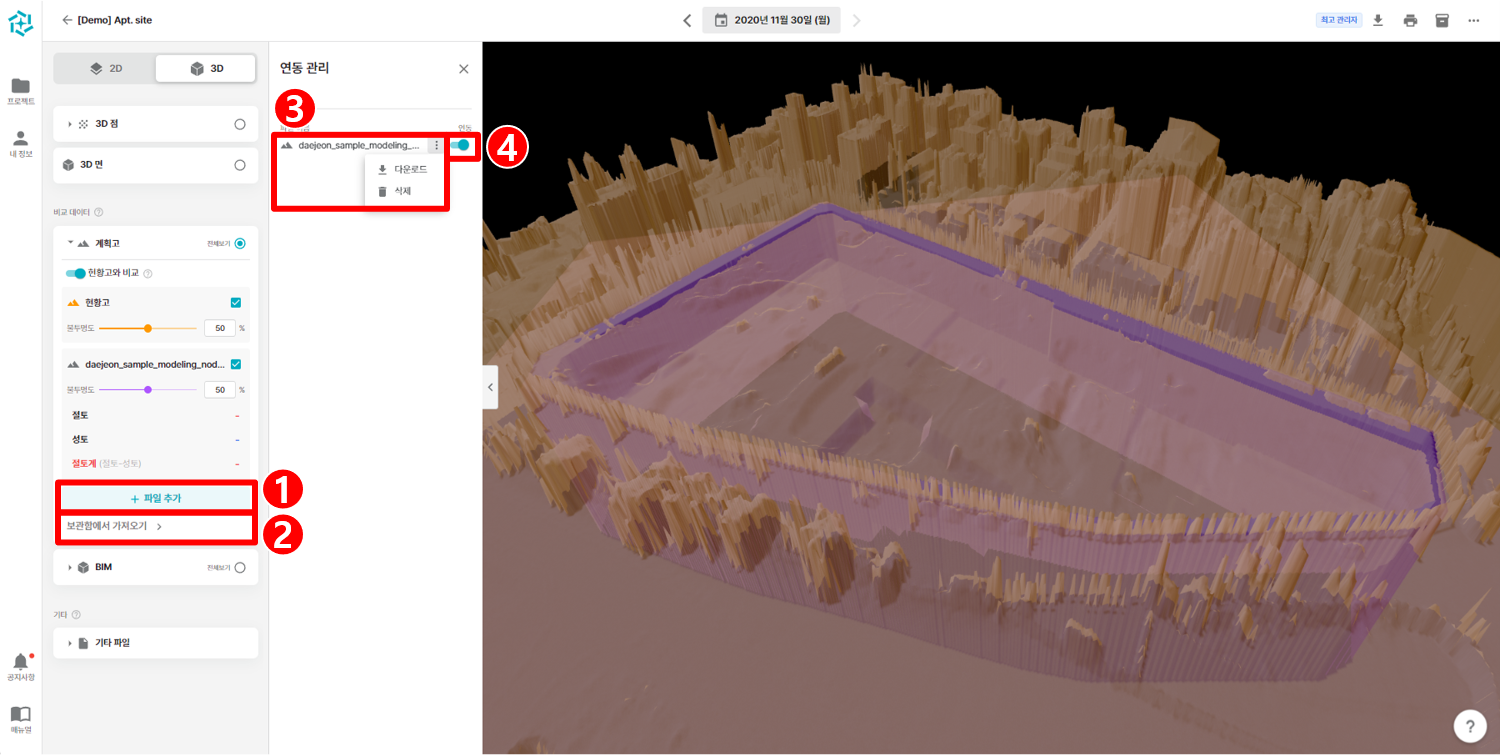

① + Add file to add a plan file. You can only upload files with the TIF extension and 30GB or less.
② Click Import from Archive to go to the Manage 3D Planar Integration tab.
③ You can see the names of the uploaded 3D plans and click the ⠇ button to download and delete them.
④ Disabling the integration slide button will disable the integration.
